Server

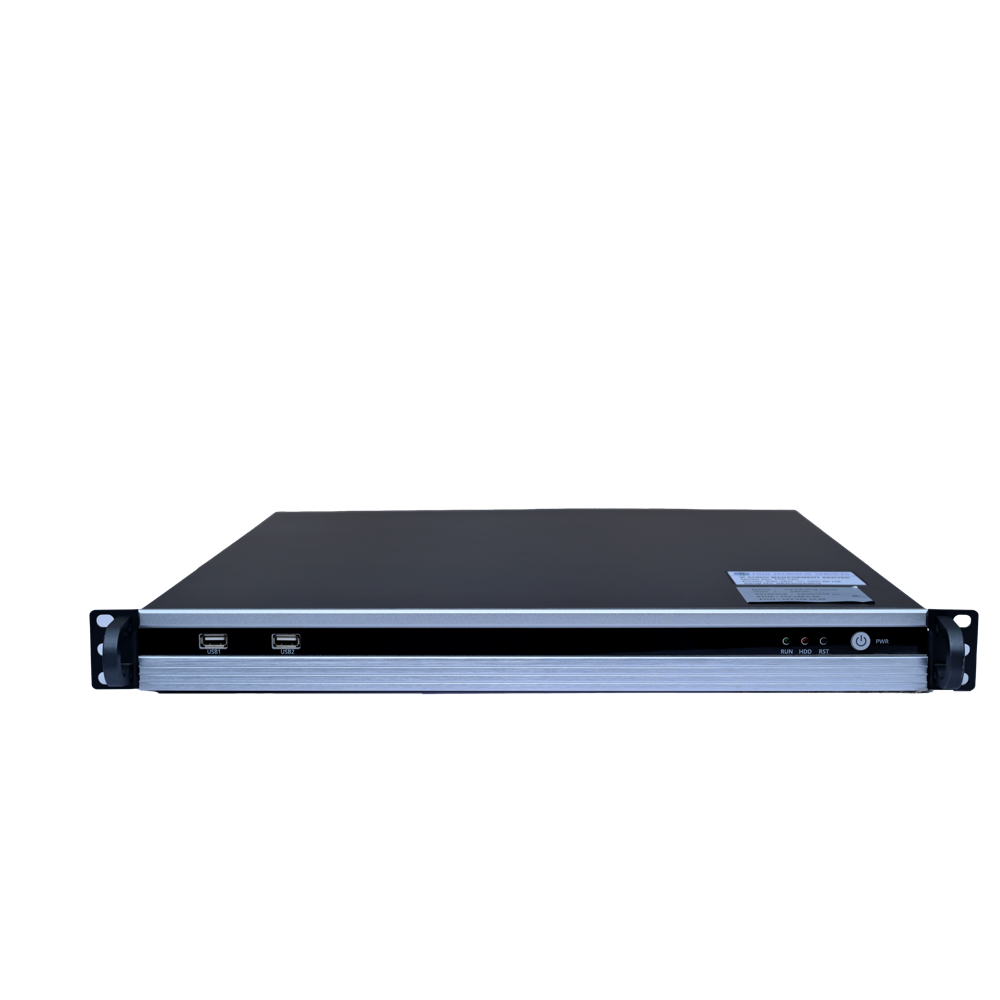

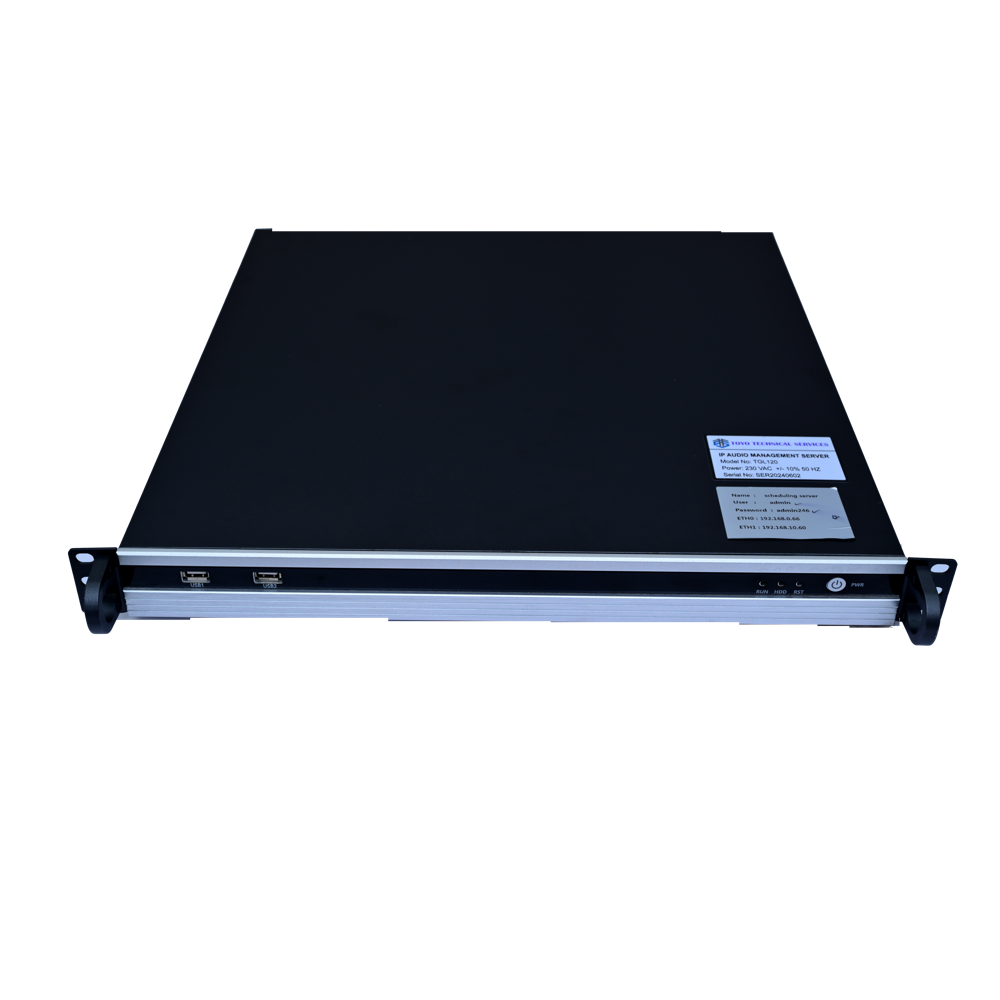

TGL120

Features

IP Audio management server is designed to bring leading edge voice, video, data, and ability features to enterprises, small and medium businesses, Two-way Intercom and P.A Broadcasting for all kind of Critical Industrial Communication system. It is an easy-to-manage Configure as per Customer Requirement.
This industrial-grade on premise IP PBX supports offers scalability by supporting from 50 to 2000 users depending Customers requirement can be customized.
This secure and reliable server delivers unified communication features at an unprecedented price point without any licensing fees, costs-per-feature, or recurring fees.
1) Control room to Field call station/Extension , Field call station /Extension to Control room , and Field call station to Field call station two way Intercom with Paging broadcast with each other.
2) The software and hardware of the product have good scalability, which is convenient for system expansion and upgrade in the future to meet the current business needs and meet

Parameter	Specifications
Communication Protocol	ARP、IP、ICMP、TCP、UDP、SIP
Technical Specification	RFC3261、RFC3262、RFC3263、RFC3264、RFC1889、RFC1890
Speech Codec	G.711u, G.723, and G.729 G.722(broadband)
Voice	G.711 A-Law / U-Law, G.723.1, G.726, G.729A
Intercom Function	Two-way intercom, Group call, all call, one click Calling by DSS Keys, Call Recording Function, Emergency call.
Scheduling Function	Hunt group, call queue, unplug, environment monitoring, call monitoring, multi-party conference
Broadcast Function	Regional broadcasting, Shouting broadcasting, timed broadcasting, music broadcasting, text broadcasting
Video Function	Video linkage
Telephone Function	Incoming calls, outgoing calls, secondary dialling, wait dialling, trunk hunting
Alarm Function	Trigger alarm and alarm plan
Electronic Map	Status presentation, hotspot management, layer management

Parameter	Specifications
Software	Linux Platform Support, Web configuration
Terminal Registration Capacity	50/100/200/500/1000/2000
Digital Signal	SIP 2.0
No. Of Concurrent Calls	15/30
Concurrent Recording Channels	8/16/32

Parameter	Specifications
Processor	Intel high-performance processor
Memory	8GB/16GB/32
Storage	250GB/500 solid state disk

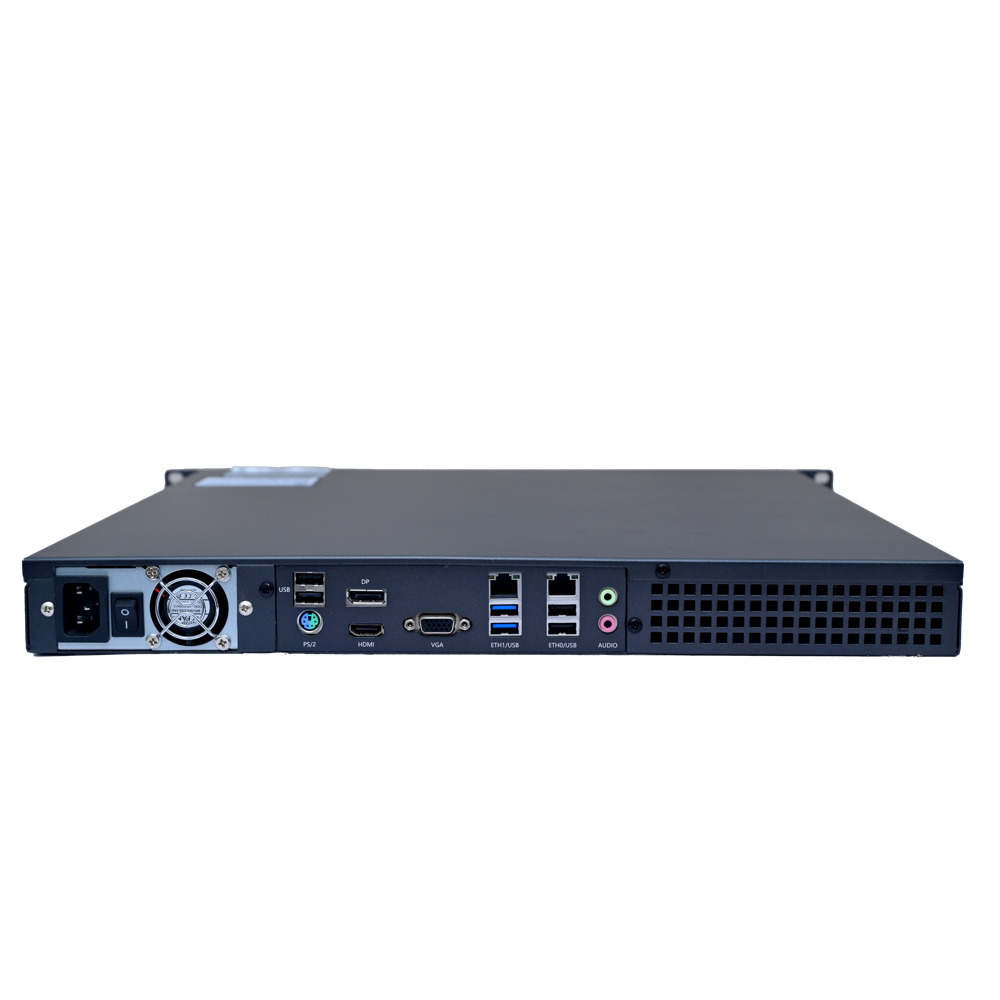

Interface	2 Ports of 10/100/1000M , 1 Ports of RS232 ，2 Ports of USB2.0
IP Protocol	IPv4, UDP, DHCP, SIP
Terminal Management And Automatic Deployment Capabilities	Support for SIP terminal plug-and-play auto-deployment (including DHCP / multicast SIP , support remote upgrade, local upgrade
Power Supply	Input voltage/frequency: 220VAC/50Hz
Power Consumption	Total power consumption: 71.5W (standby); Total power consumption: 121W (operating)
Dimensions, Weight	482.6×88.1×500mm,2U Rack； 9.7KG
Working Temperature	0～45°C
Humidity	10%～90% (non-condensing)
