Chassis

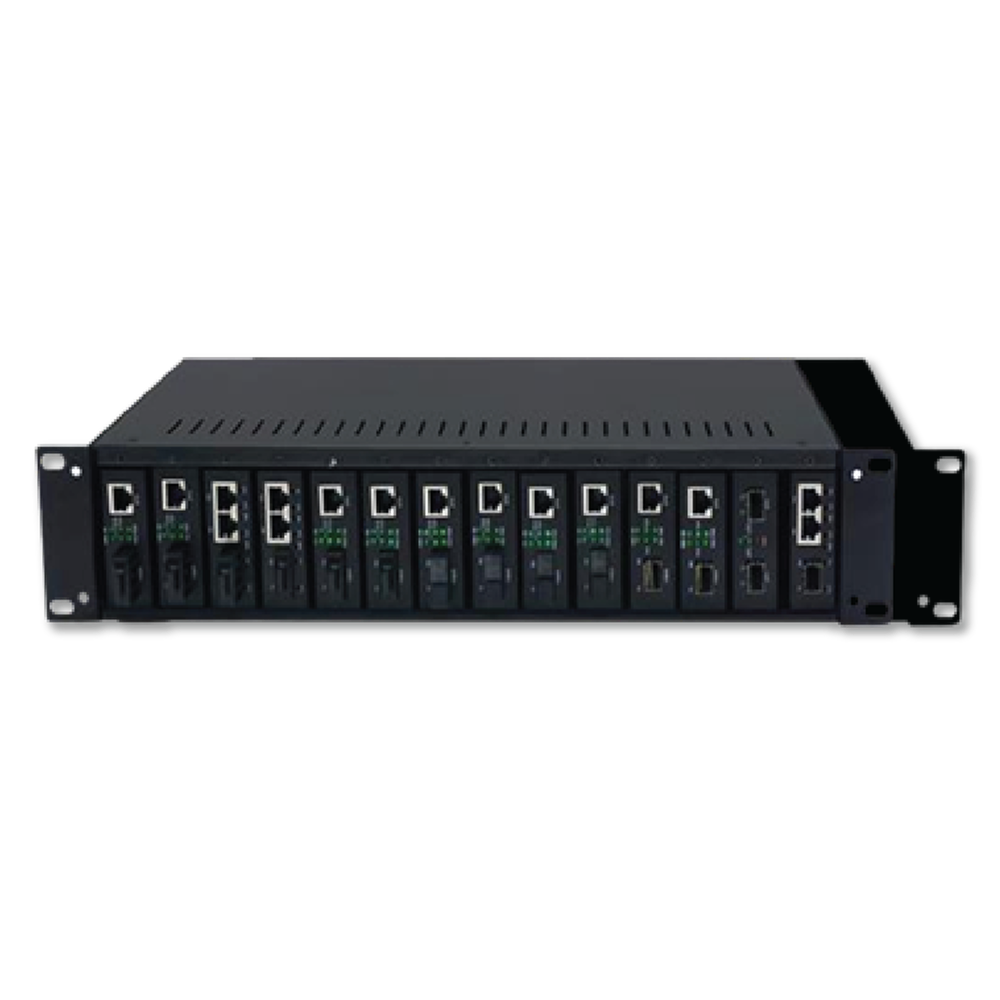

TOR-14
Features
- High quality 19’’ chassis-Mountable Chassis installation.
- Supports up to 14 hot-swappable media converters.
- Each power supply with one fan which brings the air-flow for system cooling.
- Two power slots at rear panel for redundant power support with options of AC or DC supplies.
- Bay power isolation, ensure each bay is electrically isolated from each other.
- Support multiple converters with 10/100/1000Mbps, copper, fiber, single/multi-mode, ST/SC/SFP connectors.
- Reduce the effort of converter maintenance and management, diagnose the status at one time.
- Cost-effective, easy install.
- Conforms to FCC, CE, RoHS.
Technical Specifications
| Key Features | Description |
|---|---|
| Number Of Slots | 14 |
| Structure | 2U rack |
| Power Input | AC Voltage: AC 100~265V; frequency: 50/60 Hz DC Voltage: DC 40~70V |
| Power Output | DC5V 12A |
| Ripple | ≤20mv |
| Power Configuration | Single power supply or Dual power supply |
| Led Indication | POWER (power supply) |
| Max Power Consumption | 60W for Single power supply; 120W for Dual power supply |
| Operating Temperature | -20~65ºC |
| Operating Humidity | 5%~90% |
| Maintaining Temperature | -40~70ºC |
| Maintaining Humidity | 5% ~ 90% non-condensing |

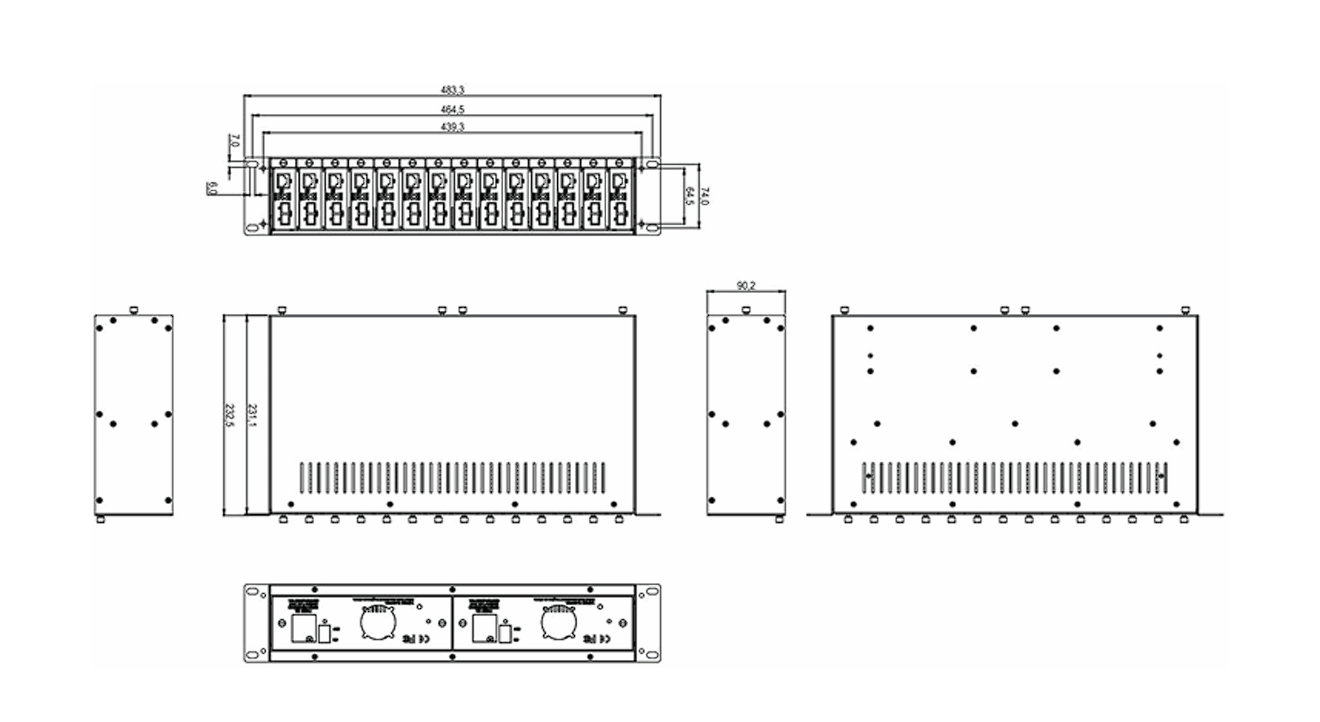

| Dimensions Of Rack | 427mm* 230mm* 90mm |
Order Information
| Model | Description |
|---|---|
| TOR-14-2A | 19' 2U 14 Slot Chassis with double AC220V Power Supply |
| TOR-14-2D | 19' 2U 14 Slot Chassis with double DC48V Power Supply |
| TOR-14-AD | 19' 2U 14 Slot Chassis with AC220V and DC48V Power Supply |
