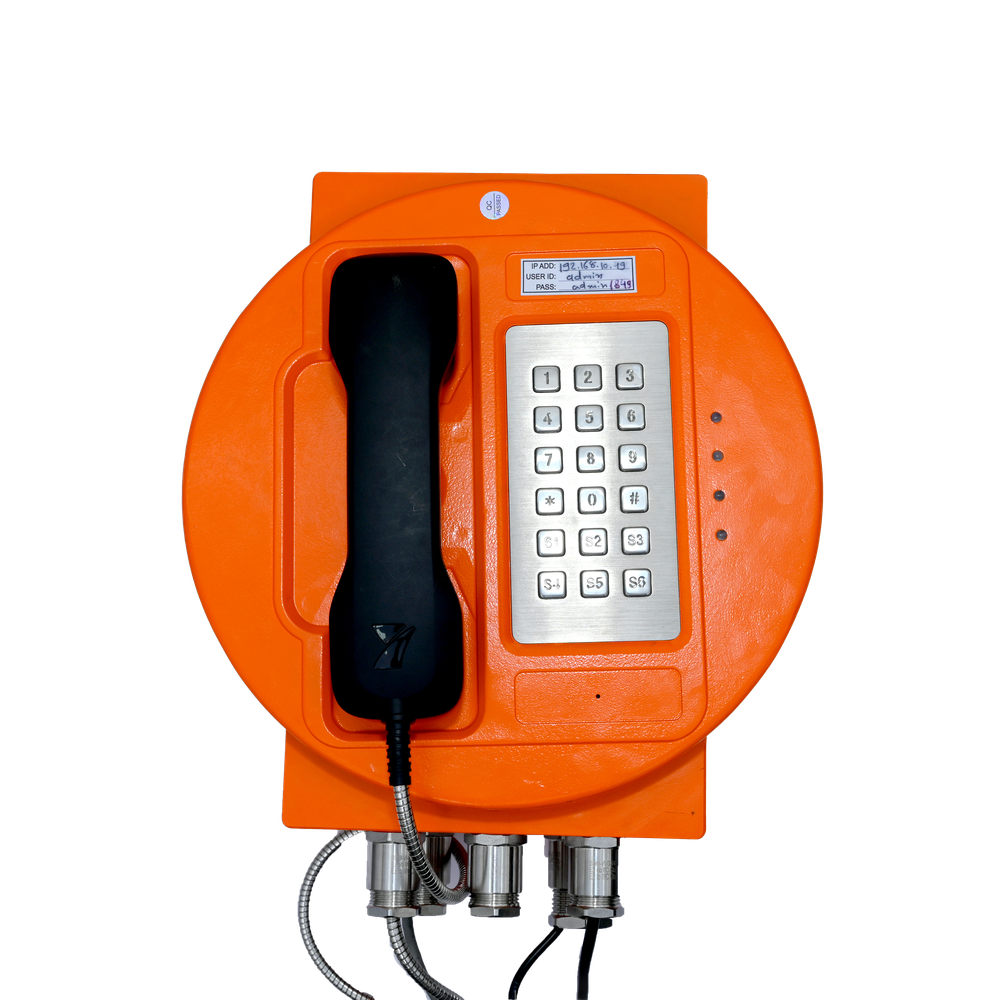

Explosion-proof IP Based PA Field Call Station
TS-SG EX11
Features
- The phone has good stability and strong anti-interference ability, in line with the national standard GB/T 15279-94
- Built in 25watt RMS Power amplifier for external speaker
- 2.Zinc-aluminum alloy die-casting shell, sturdy and durable, good airtightness, and strong corrosion resistance
- LAN /POEE line powered. TCP /IP SIP Supported
- Full keypad with memory, 10 button programmable speed-dial telephone, Illuminated button
- Aluminium alloy die-cast body, Vandal resistant and tamper-resistant
- Selectable 7-minute time out optional
- Lightening protection to ITU-T K.21
- Explosion-proof grade: ExD ib IIC T6 GB Zone-1 & Zone-2, IIC
- Hearing Aid compatible receiver
- Noise cancelling microphone
Technical Specifications
| Key Features | Description |
|---|---|
| Explosionproof Protection | Zone-1 & Zone-2, IIA, IIB, IIC T6 |
| Types Of Protection | Weatherproof IP67 |
| MTBF | 1,00,000 Hours |
| Keypad | Heavy Duty SS 316L Keypad 12+3 Extra Keys Hot Key Configuration |
| Call Controlling Signalling | VOIP SIP Info (DTMF), RFC 2833 (DTMF) |
| Power Supply | 24 VDC |
| IP Protocols | IPv4, UDP, DHCP, SIP |
| Network | 10/100 Base TX Ethernet, RJ45 Connectors, Cat5e or better |
| LAN Protocols |
Power over Ethernet (PoE, 802.3af) Network Access Control (IEEE8022.1x), HTTP, HTTPS, SIP2.0 |
| Programming | Non- Volatile flash memory Programming and Configuration through Web GUI |
| Management And Operation | DHCP and Static IP, Remote authentic software upgrade, centralized monitoring |
| Echo/noise Cancellation Code | G.167/G.168 |
| Amplifier Output | Built-in 25 Watt RMS for External Speaker |
| Sound Output | 115 dB @ 1W, 1Mtr |
| Audio Codes | G.711, G.722, G.729 |
| Speed Dialing Keypad |
Super Strong Function is available for dialing 3 groups of numbers stored in the memory |
| Housing | Pressure die-cast robust aluminium body |
| Unit Size | 335 x 353 x 125 mm |
| Weight | 11 Kg |
| Environmental Conditions |
Ambient temperature: -20℃ to 65℃, Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise: less than 60dB(A) Degree of protection: IP67 |
