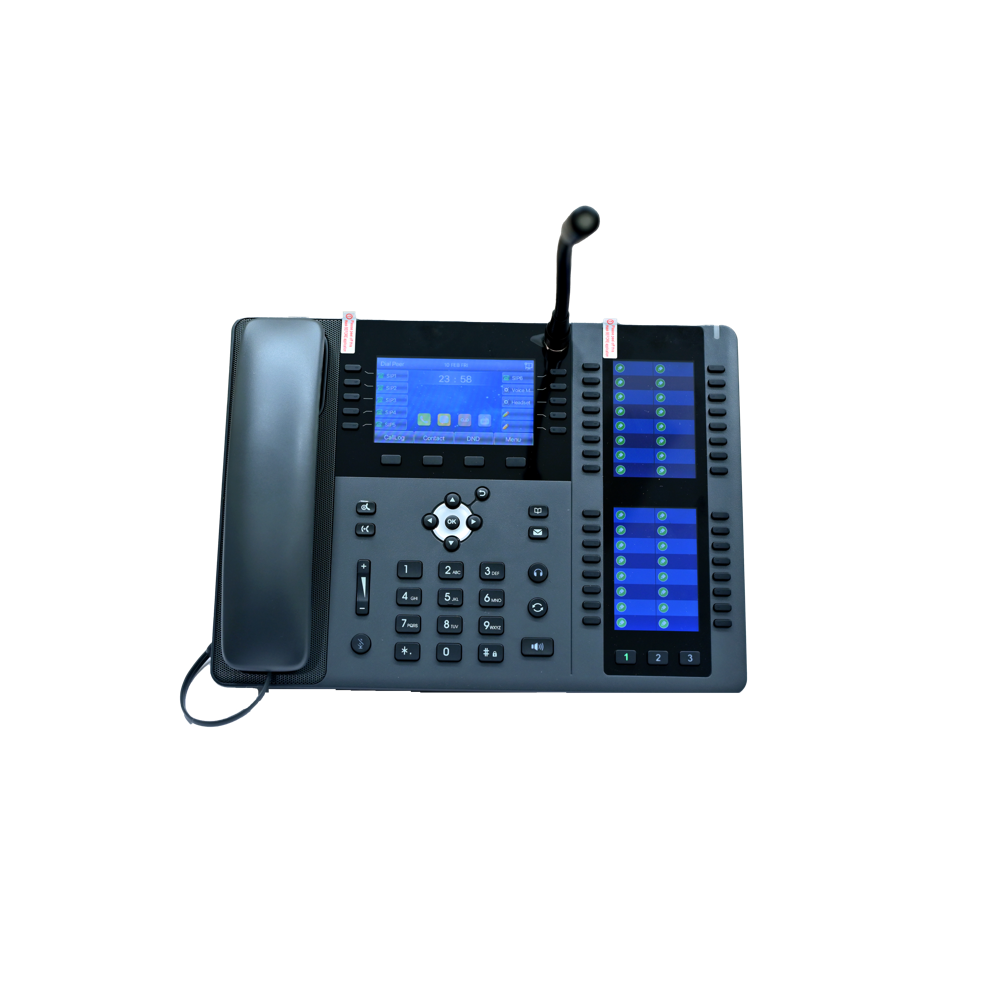

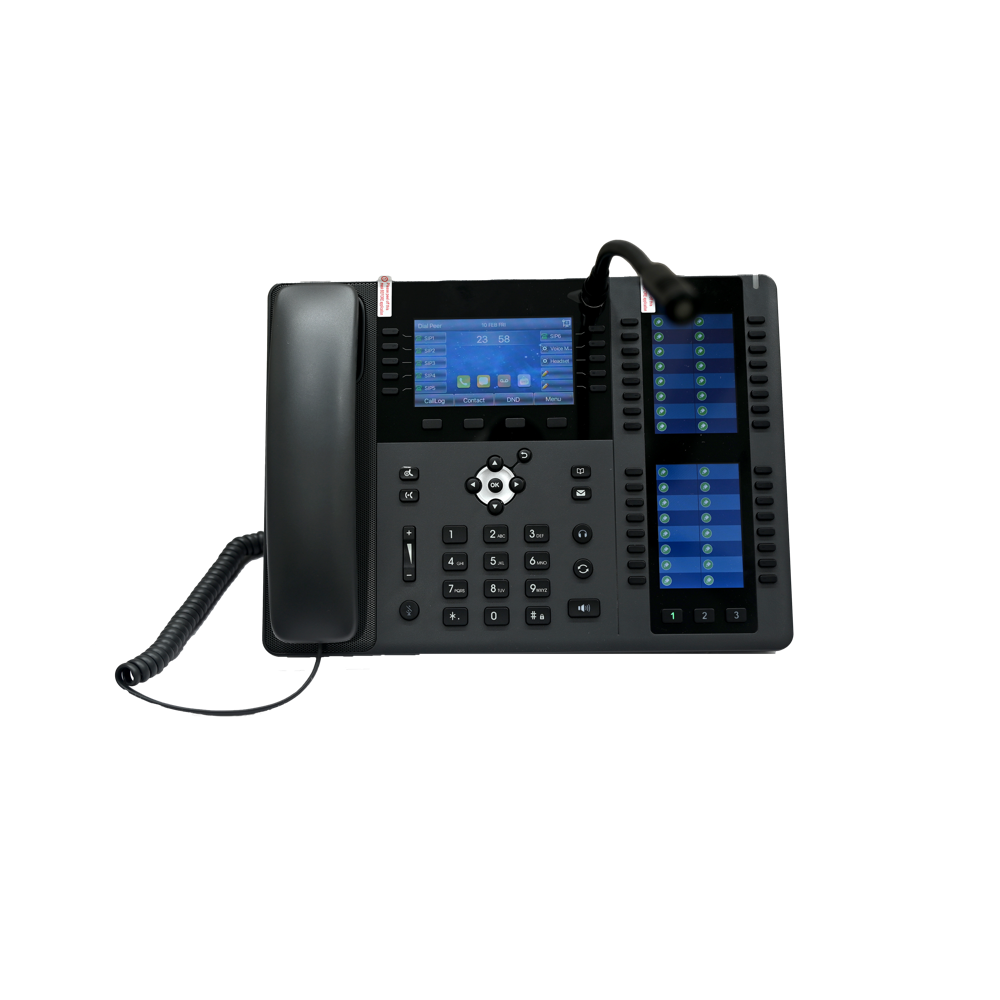

Desktop IP Station
TYT-X210
Features
- Local Phonebook (2000 entries)
- Remote Phonebook (XML/LDAP, 2000 entries)
- Call logs (In/out/missed, 1000 entries)
- Blocked /Allowed List
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Built-in Bluetooth 4.2: Support Bluetooth headset
- Support Wi-Fi Dongle
- Support Poly wireless headset
- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
- Support Recording (Through Flash Drive or Server Recording )
- Action URL / Active URI
- uaCSTA
Highlights

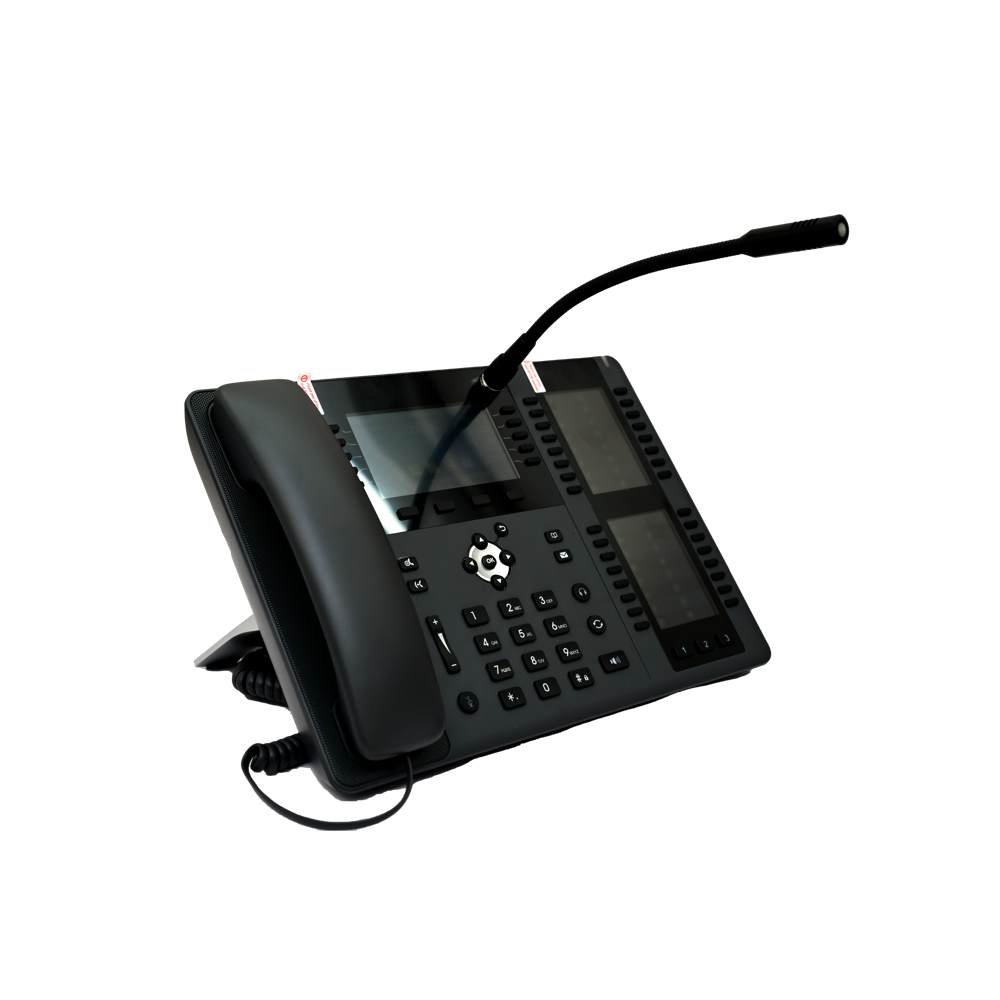

- Movable type Directional External Gooseneck Microphone
- 4.3” main color display, 2x3.5” side color displays for DSS keys
- 20 SIP lines, hotspot
- HD audio on speakerphone and handset
- Built-in Bluetooth 4.2
- Wi-Fi connectivity (Via Wi-Fi dongle)
- 6-way audio conference
- Up to 106 DSS keys (42 tri-colored physical keys)
- Video Codec H.264 support for receiving video calls
- Stand with 2 adjustable angles of 40 and 50 degrees
Generic
- 20 SIP Lines
- HD Voice
- Support receiving Video call
- POE Enabled
- 3 LCDs (Main + DSS)
- Handset / Hands-free / Headset mode
- Intelligent DSS Keys
- Optional External Power Supply
Call Features
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forwarding (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (Depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (On server)
- 6-way Audio Conference
- Hot Line
- Hot desking
Video
- Video codec: H.264
- Video call resolution: QCIF / QVGA / CIF / VGA / 4CIF / 720P / 1080P
Audio
- HD Voice Microphone/Speaker (Handset/Hands free, 0 ~ 7KHz Frequency Response)
- HAC handset
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec: G.711a/u, G.723.1, G.726 32K, G.729A/B, iLBC
- Wideband Codec: G.722, Opus
- Full duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF: In band, Out of Band DTMF Relay(RFC2833) / SIP INFO
Networking
- Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
- IP Mode:IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- LLDP
- QoS
- RTCP XR(RFC3611),VQ RTCPXR(RFC6035)
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR 069
- AES128 & AES256
Deployment & Maintenance
- Auto Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR 069
- Web Management Portal
- Web based Packet Dump
- Configuration Export / Import
- Phonebook Import/Export
- Firmware Upgrade
- Syslog
Physical Specifications
| Key Features | Description |
|---|---|
| Main LCD X 1 | 4.3 inch (480x272) color screen LCD |
| DSS Key Mapping LCD X 2 | 3.5 inch (320x480) color screen LCD |
| Keypad |
77 keys, including, 4 Soft keys, 6 Function keys (Hold, Call forward, Phonebook, MWI, Headset, Redial), 4 Navigation keys,1 OK key, 1 Return key, 12 Standard Phone Digits keys, 3 Volume Control keys, Up/Down/Mute(Microphone), 1 Hands free key, 42 DSS Keys with tri color LED, 3 Page Switch (PS) key |
| Gooseneck Microphone X 1 | Directional microphone, Frequency response: 20Hz~20KHz, SNR: 60 dB.1kHz at 1 Pa |
| Back Rack X 1 | 4.3 inch (480x272) color screen LCD |
| Gooseneck Mic Port X 1 | Gooseneck Microphone x1 |
| Rj9 Port X 2 | Handset x1, Headset x1 |
| Rj45 Port X 2 | Network x1, PC x1 (Bridged to Network) |
| Usb2.0 Port X 1 | Standard A, Connect with Wi Fi USB dongle or Flash Driver |
| Dc Power Input | 5V/2A |
| Power Consumption (Poe) | 1.88~7.3W |
| Power Consumption (Adapter) | 1.36~5.84W |
| Working Temperature | 0~45℃ |
| Working Humidity | 10~95% |
| Qty/ctn | 10 Pcs |
| N.w/ctn | 18.77 Kgs |
| G.w/ctn | 19.9 Kgs |
| Installation | Desktop Stand |
| Colour | Dark Gray |
| Device Dimensions |
Desktop Stand (Angles 1): 309 x 214 x 187 mm Desktop Stand (Angles 2): 309 x 226 x 167 mm |
| Dimensions | 323 x 302 x 71 mm |
| Outer Ctn Dimensions | 624 x 383 x 348 mm (10 Pcs) |
