Industrial

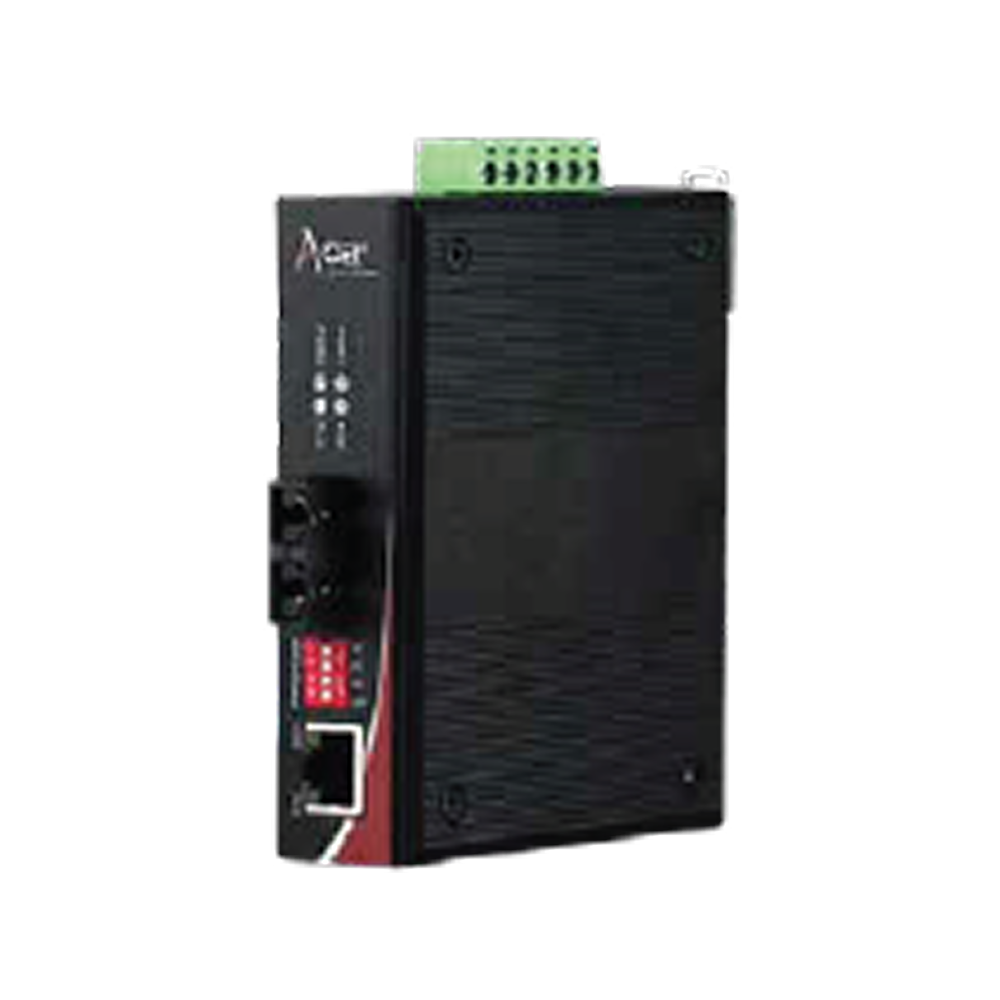

TMC1100P
Features
- UTP with POE to fiber media converter
- Wide-range redundant power design (48~56VDC)
- IEEE 802.3af/at compliant
- Power polarity reverse protect
- Overload current resettable fuse present
- IP-40 protection
- Auto-negotiation speed, half/full-duplex
- Store-and-forward & Cut-thought optional
- Built-in LFP (Link-fault-pass-through) function
- Jumbo frame: 9kbytes
- Support wide operating temperature (-40 ˚C ~ +85 ˚C)
- Provide EFT protection for Power line
- Support Ethernet ESD protection
- DIN-Rail and Wall- Mounted Installation
Technical Specifications
| Key Features | Description |
|---|---|
| Power |
Input Voltage: 48~56VDC, redundant power inputs Power Consumption: ≤5W PoE Budget: 15.4W(PoE) 30W(PoE+) Protection: Overload Current; Reverse Polarity Connector: Terminal Block |
| Standards |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3x Flow control and back pressure IEEE802.1d Spanning Tree IEEE802.3af/at POE |
| Performance |
Processing Type: Store and Forward, Cut-through Back Bandwidth: 0.4Gbps MAC Address Size: 2Kbit Packet Buffer Size: 1Mbit Time Delay: <10us Frame: 9Kbytes |
| Copper Port |
Data Rate: 10/100M Connector: RJ45 Distance: 100m |
| Fiber Port |
Data Rate: 155M Connector: SC as default, FC/ST Optional Distance: MMF=2km,SMF =20/40/80/100/120km, Bi-di=20/40/80/100/120km |
| Environment |
Operating Temperature:-40 ˚C ~ +85 ˚C Storage Temperature: -40 ˚C ~ +95 ˚C Relative Humidity: 5-95% (no condensation) |
| Physical Characteristics |

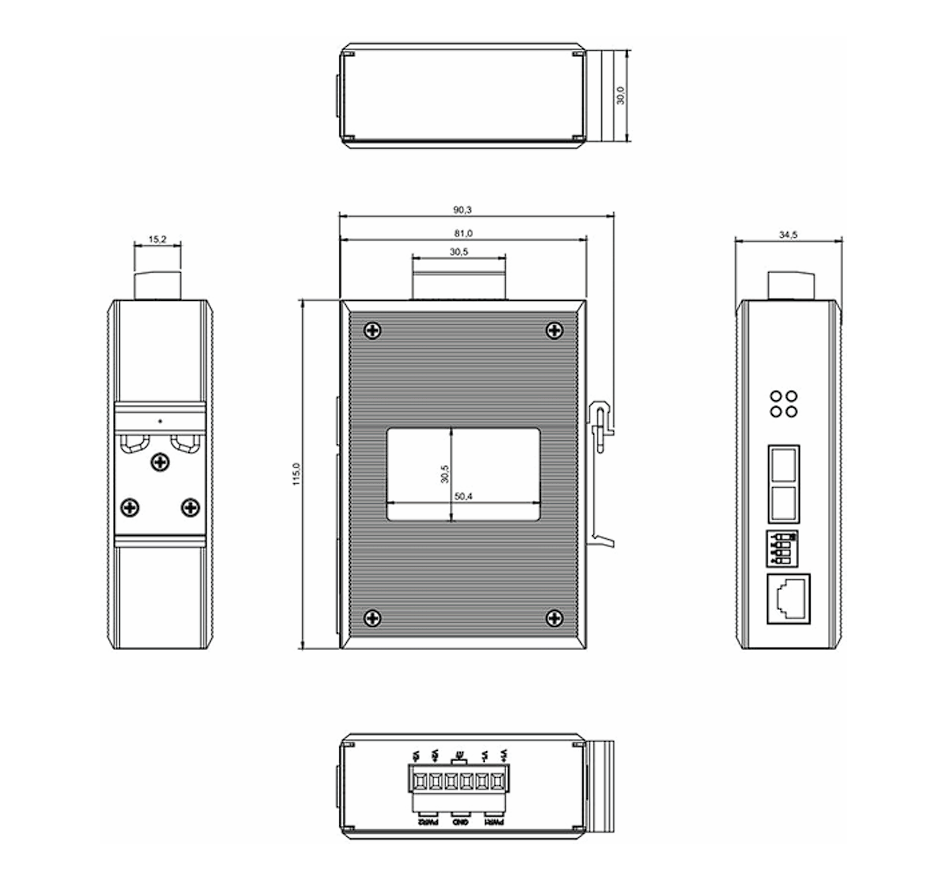

Housing: IP40 Protection; Aluminum Alloy Installation: DIN-rail mounting, wall mounting(with optional kit) Dimension: 115*81*35mm(device); 220*175*73mm(packing) Weight: 0.30kg(device); 0.43kg(device with packing) |
| Led Indication |
PWR1: ON=Power Connected PWR2: ON= Power Connected FL/A: ON=Fiber Connected; Active=Data Transmitting TL/A: ON=Copper Connected; Active= Data Transmitting 100M: ON=100M; OFF=10M POE: ON=Power Working; Off=No Power |
