4-Port
TIMS3200-4P2S

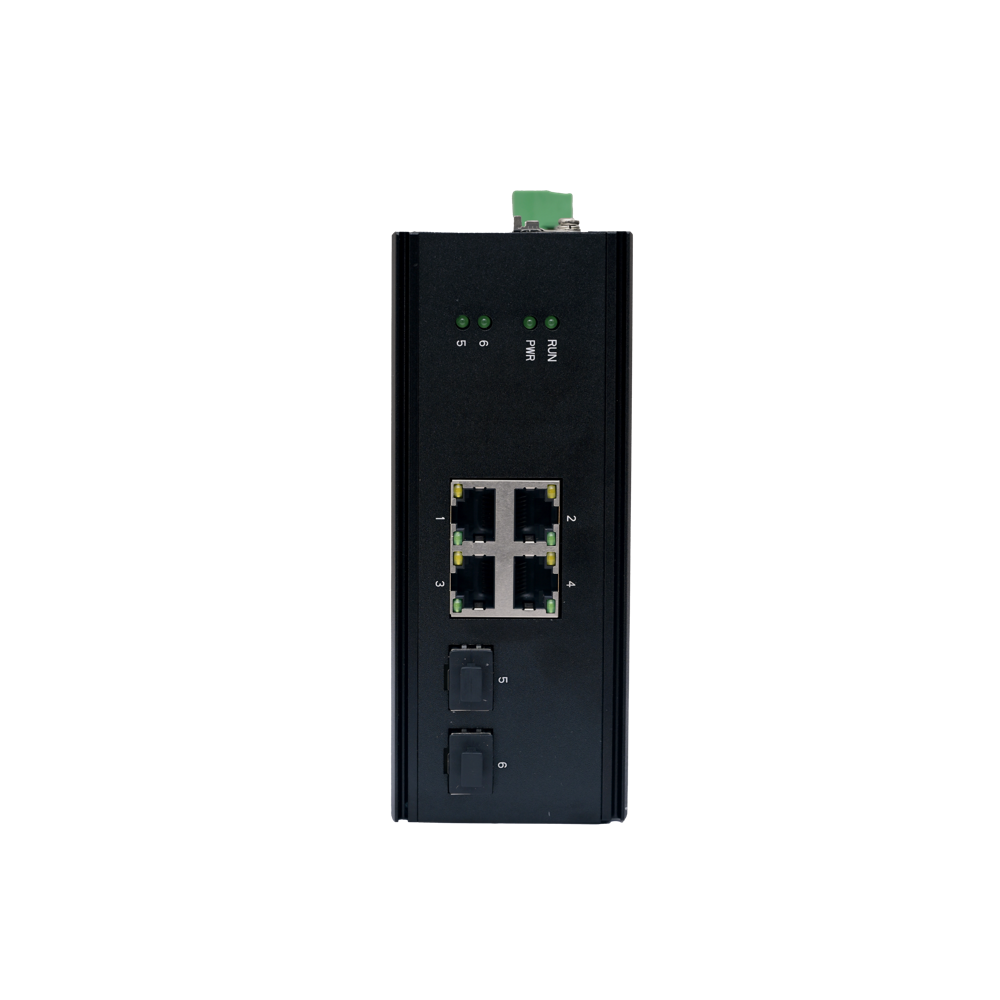

Features
- ERPS (G.8032)
- SFP 100/1000Base-X
- Loop Protection
- Low power consumption
- Redundant dual DC input power
- IP40 Aluminum metal case protection
- Provide power polarity reverse, overload current protect function
- DIN-rail default, Wall Mount kits optional
- 2.25K VDC Hi-pot isolation protection for Ethernet ports and power
- Supports EFT protection 6000VDC for power line
- 4KV surge protection for UTP and fiber ports
- Supports 8~15KV ESD protection
Technical Specifications

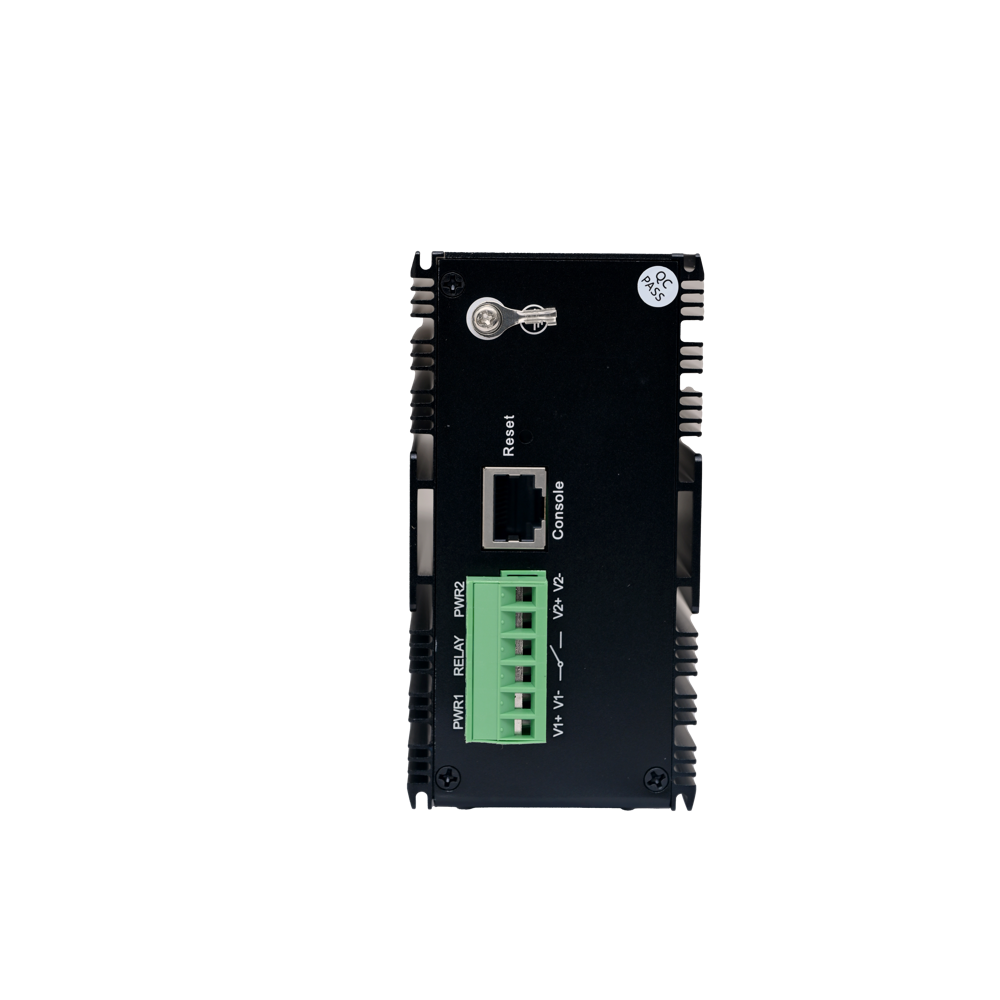

| Key Features | Description |
|---|---|
| Housing | IP40 Protection, Aluminum Alloy, fan-less |
| Weight | 0.75kg(device); 0.93kg(device with packing) |
| Power |
DC:48V~58V/2.29A, redundant power inputs 6-PIN Removable Terminal Block Overload voltage protection Overload current protection Reverse Polarity protection Lightning protection:6KV |
| Standards |
IEEE802.3 10BASE-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x Flow control and back pressure, IEEE802.1Q VLAN, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, IEEE802.3af/at PoE PoE+ |
| Switching Capacity | 12GBPS/ Non-blocking |
| Mac Address Table | 8K |
| Data Bu Er | 4M |
| Maximum Frame Size | 9.6K Jumbo Frame |
| Copper |
4*10/100/1000Base-T, RJ45 ESD protection EFT protection |
| Fiber | 2*100/1000Base-X,SFP Slot |
| Poe |
PIN: 1/2(+), 3/6(-) PoE over data pairs, Type A Power range: DC48-57V PoE budget up to 120W |
| Console | Output power / working time management RS232 (RJ45) |
| Key Switch | Reset |
| Led Indicators | PWR, RUN, Link/Act, Speed, Fiber Link, POE |
| Operating Temperatures | -40 ˚C ~ +85 ˚C |
| Relative Humidity | 5-95% (no condensation) |

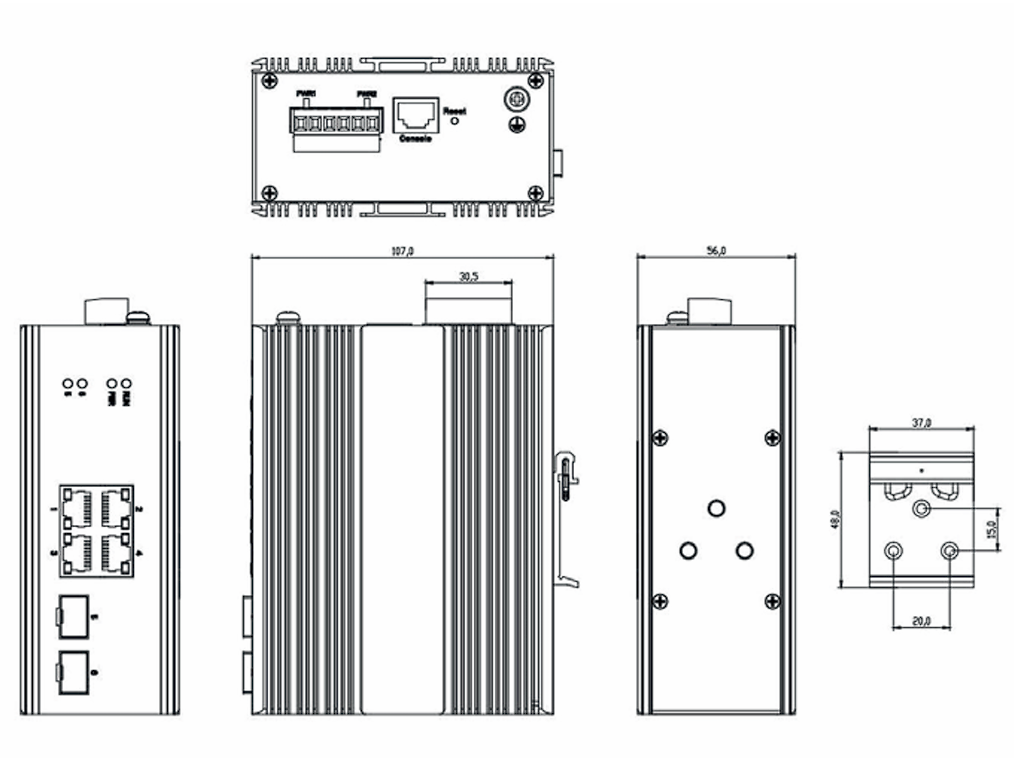

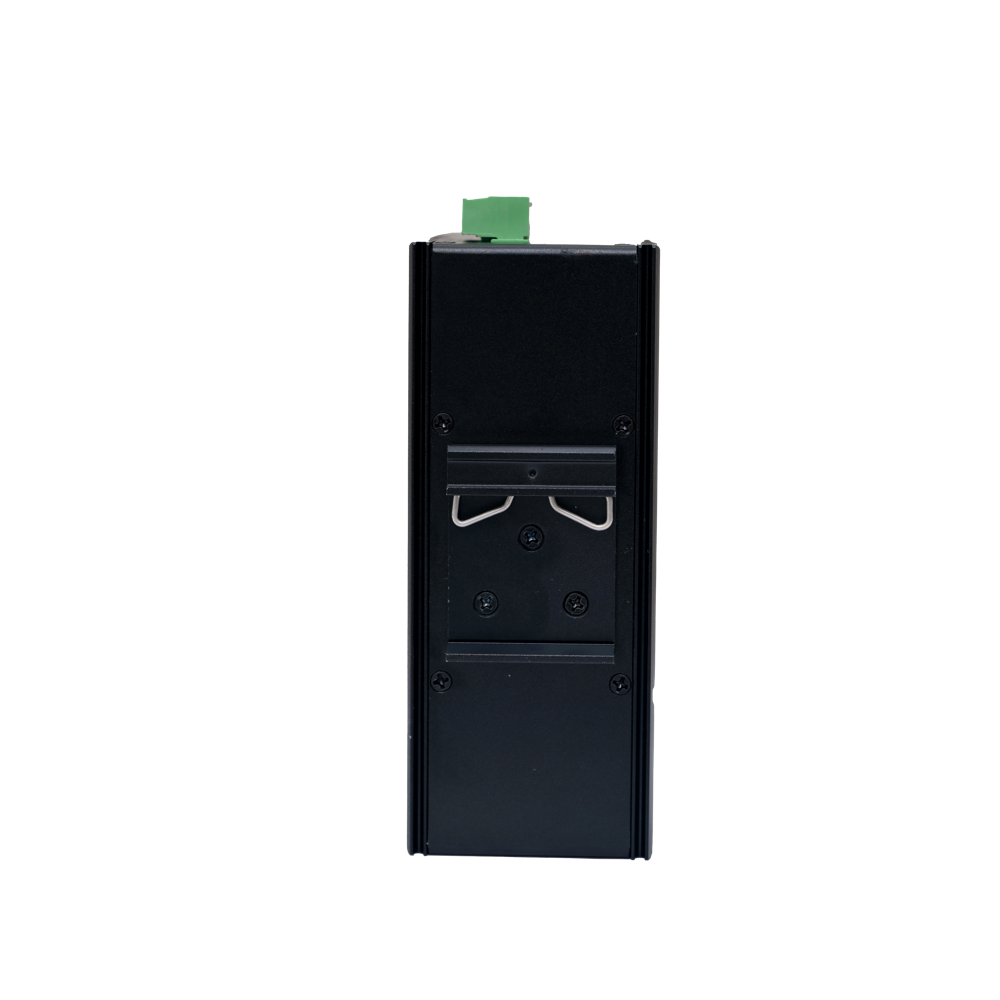

| Mounting | DIN-rail 35-7.5, wall mounting (with optional kit) |
| Dimensions | 138*107*56 mm (Device); 235*170*95 mm (Packing) |
| Regulations | CE/ FCC/ ROSH |
| Parameter | Specifications |
|---|---|
| Port Features |
IEEE 802.3x flow control Interface counters Storm control Port isloated |
| Link Aggression |
Static aggregation Dynamic aggregation, LACP |
| Mirror |
Port-based mirror Vlan-Based Flow-Based |
| Spanning Tree |
IEEE802.1d STP IEEE802.1w RSTP IEEE802.1s MSTP |
| V LAN |
Port-based VLAN access/trunk/hybrid-port 4094 IEEE802.1Q VLAN VID GVRP |
| Mac Address Table |
IEEE 802.1q MAC address: 8K Support MAC address automatic learning and aging Static mac-address Dynamic mac-address Security mac-address |
| Loop Protection | Supported |
| Private VLAN | Supported |
| ERPS (G.8032) |
Single ring Sub-Ring Multi-ring Load balance Recovery Time < 50ms |
| Layer 2 Multicast |
IGMP Snooping V1/V2/V3 Source Port Check IGMP Fast Leave; Filter, Agent |
| Parameter | Specifications |
|---|---|
| ACL |
ACL (IP Standard ACL), IPV4/IPV6 MAC extend ACL;IP extend ACL Support matching L2, L3, L4 layer fields Support log, redirection, mirroring, speed limit |
| QoS |
IGMP Snooping V1/V2/V3 Source Port Check IGMP Fast Leave; Filter, Agent Ingress Priority-based Rate-limit Egress Port-based Rate-limit Egress Queue-based Rate-limit Policy-based QoS Storm Control IEEE 802.1p 8 active priorities queues for per port |
| Parameter | Specifications |
|---|---|
| Dot 1x |
Port Access Control User Access Control Mac-address Access Control RADIUS Server |
| IP Source Guard |
Support dynamic table entries Support static table entries |
| ARP Inspection |
Support dynamic table entries Support static table entries |
| Port Security | Supported |
| Access Management | Supported |
| User Management | Password Protection |
| Snmp | SNMP V1/v2C/V3 |
| Rmon |
Statistics Group History Group Alarm Group Events Group |
| CLI | Support |
| Radius Client | Support |
| Web Management | HTTP V1.1, HTTPS |
| Firmware Upgrade | Reversion Upgrade |
| Syslog/ Debug | Support |
| Ipv4/ipv6 | Support |
| Diagnosis |
ping(ipv4) ping(ipv6) Trace route(ipv4) Trace route(ipv6) |
| Parameter | Specifications |
|---|---|
| NTP | NTP Client |
| DHCP | DHCP Client |
| DHCP Snooping | Trust Port |
| Telnet | Talnet Server |
| TFTP | TFTP Client |
| SSH | SSH Server |
Order Information
| Model | Description |
|---|---|
| TIMS3200-4P2S | 4*10/100/1000Base-T (POE) + 2*100/1000Base-X, SFP slot |
