Clean Room

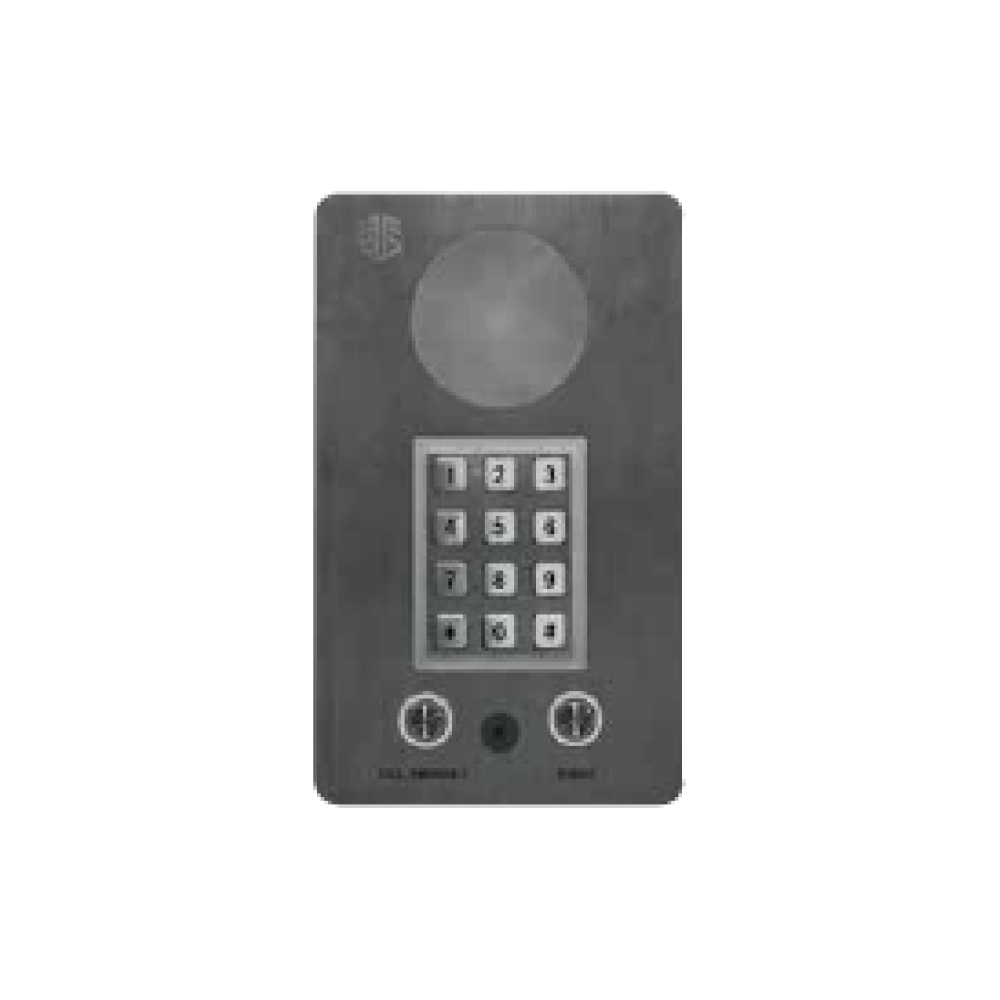

YT-IPJMT12
Features
- Voice intercom Speed dial (speed dial key) Automatic response (individual line configuration) Voicemail (server required)
- One-touch dialing: Press the emergency call button and the machine will automatically connect to the pre-stored phone number.
- Automatic hang up: The machine can hang up automatically when the calling party hangs up.
- The phone has good stability, strong anti-interference ability, and meets.
- The one-touch emergency phone panel has a unique anti-demolition and anti-theft design. The whole machine has high reliability, most of which are imported parts, the machine has long service life, simple operation, strong waterproof and dustproof, no maintenance and so on.
- The phone has good stability, strong anti-interference ability, and meets the national standard GB/T 15279-94.
- The buttons of the phone are made of stainless steel, and the contact resistance is less than or equal to 30 ohms. Service life ≥5 million times, pressing force 160-200 grams.
Technical Specifications
| Key Features | Description |
|---|---|
| MTBF | Calculated to have an M.T.B.F in excess of 50,000 hours using |
| Power Supply | POEE |
| Weight |
2 Kg |
| Casting Material | Stainless Steel Body SS 304 |
| Type Of Handset | Handsfree, Full duplex handsfree call |
| Keypad Type | Rugged Metal Keypad |
| Hook Switch | No switch, Auto disconnect |
| Keypad Push Button | Speed dial keys stainless steel 2 Push Button 1P65 Rating with Back Illuminated |
| Supported Protocol |
SIP v1 (RFC2543), v2(RFC3261) ,IP/TCP/UDP/RTP/RTCP ,IP/ICMP/ARP/RARP/ SNTP ,TFTP Client/DHCP Client,Telnet/HTTP Server ,DNS Client |
| Speech Code |
G.711: 64k bit/s (PCM) ,G.723.1: 6.3k / 5.3k bit/s ,G.726: 16k / 24k / 32k / 40k bit/s (ADPCM) ,G.729A: 8k bit/s (CS-ACELP) ,G.729B: adds VAD & CNG to G.729 |
| Configuration | FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TRO69 ,web management interface |
| Temperature |
Operating: -30° C to +65° C Storing: -40º C to +75° C |
| Outdoor Protection | Weather Resistance IP 54 |
| Ringing Tone | Shrill Warble Tone 80 dBA at 1Mtr. |
| Dimension | 225 x 125 x 35 mm |
| Ringing Tone Shrill Warble Tone | 80 dBA at 1 Mtr. |
| Materials | SS 304 |
